With the upcoming 5G, IoT (internet of things) and blockchain technology’s rapid development, the demand for high wattage and stable power supply is an inevitable trend. CANNON 2000 has been designed to provide stable output for your system, it is also equipped with 18 sets of PCI-E 6+2 PIN slots to run as a mining rig. It is built-in with a 135mm FDB fan for an increased airflow at rigorous mining environments, and a Japanese capacitor for high stability and efficiency. CANNON 2000 is a premium choice among high-efficiency PSUs for your system. Total Power: 2000W @200-240Vac, 1500W @115-200Vac, 1200W @100-115Vac.
- Complies with ATX12 v2.4 & EPS12 v2.92
- Efficiency ? 92% @ typical Load
- Active PFC ? 0.9
- Hold up time > 17ms @ full load
- Full modular design with all black round cable
- Supports dual sets of CPU slots
- Provides 18pcs PCI-e for high-load system
- +12V single-rail design
- 5V & 3.3V rail with DC to DC Design
- Intelligent fan control with 135mm fan
- Standby wattage < 0.5W
- Complete protections: OVP, OCP, UVP, SCP, OPP, OTP

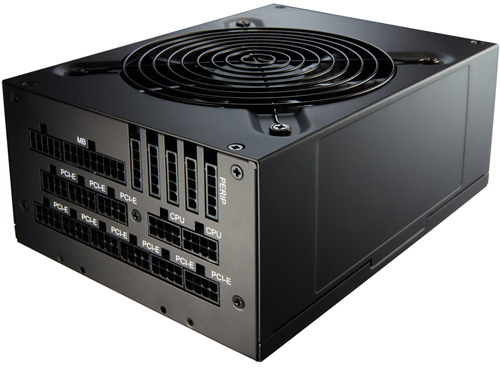

Supports Multiple Sets of Slots
The necessity for multi-rail PSUs is most important in your mining build, Cannon 2000W supports 18 sets of PCI-E 6+2 PIN slots and is able to operate for a maximum of 9 graphics cards simultaneously.
Mining Power Supply
Cannon 2000W is capable of powering all high-end GPU, GPU Mining Ethereum, ETH, Bitcoin, BlackCoin, Dash, Dogecoin, Litecoin, Namecoin, Nxt, Peercoin, and Primecoin.
Real Output for Your Component
At 230 volt input voltage, Cannon 2000W has enough power draw to handle your load of mining GPUs and system, and is able to provide full 2000 watt power to ensure sufficient power provided.

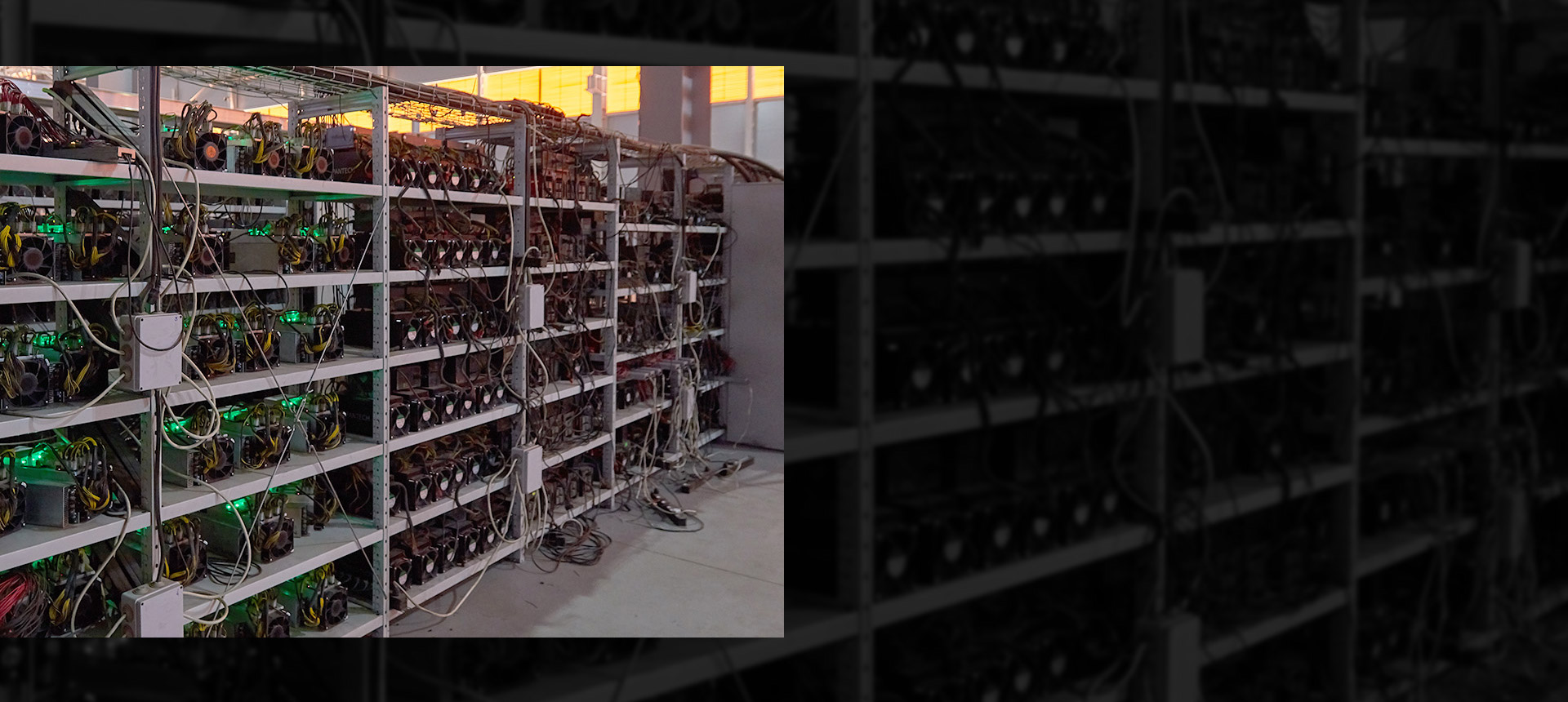

For Rigorous Mining Environments
In any situation, Cannon 2000W can provide stable and longer periods of consecutive output for whole day mining in the rigorous environments.

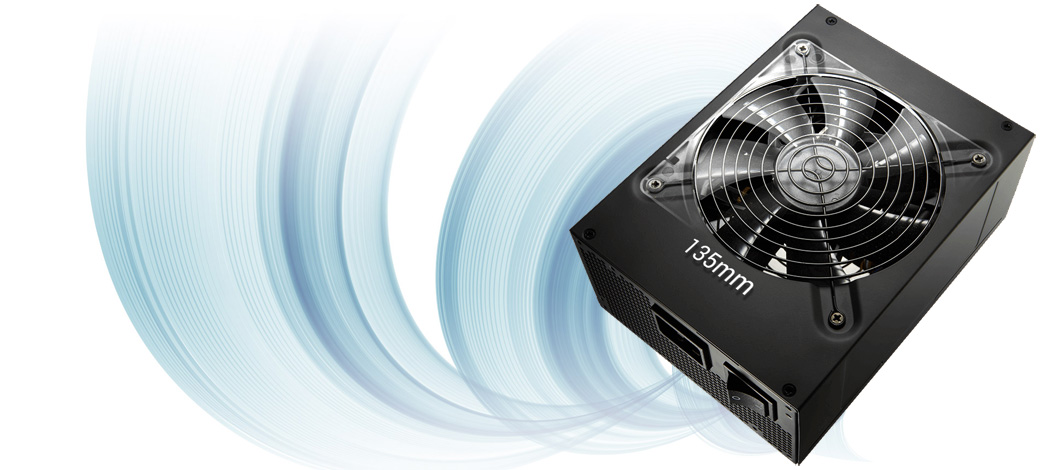

Long-Lasting 135mm FDB Fan
GPU may generate serious heat during mining, but with our integrated smart fan control, it can radically improve your cooling system performance.

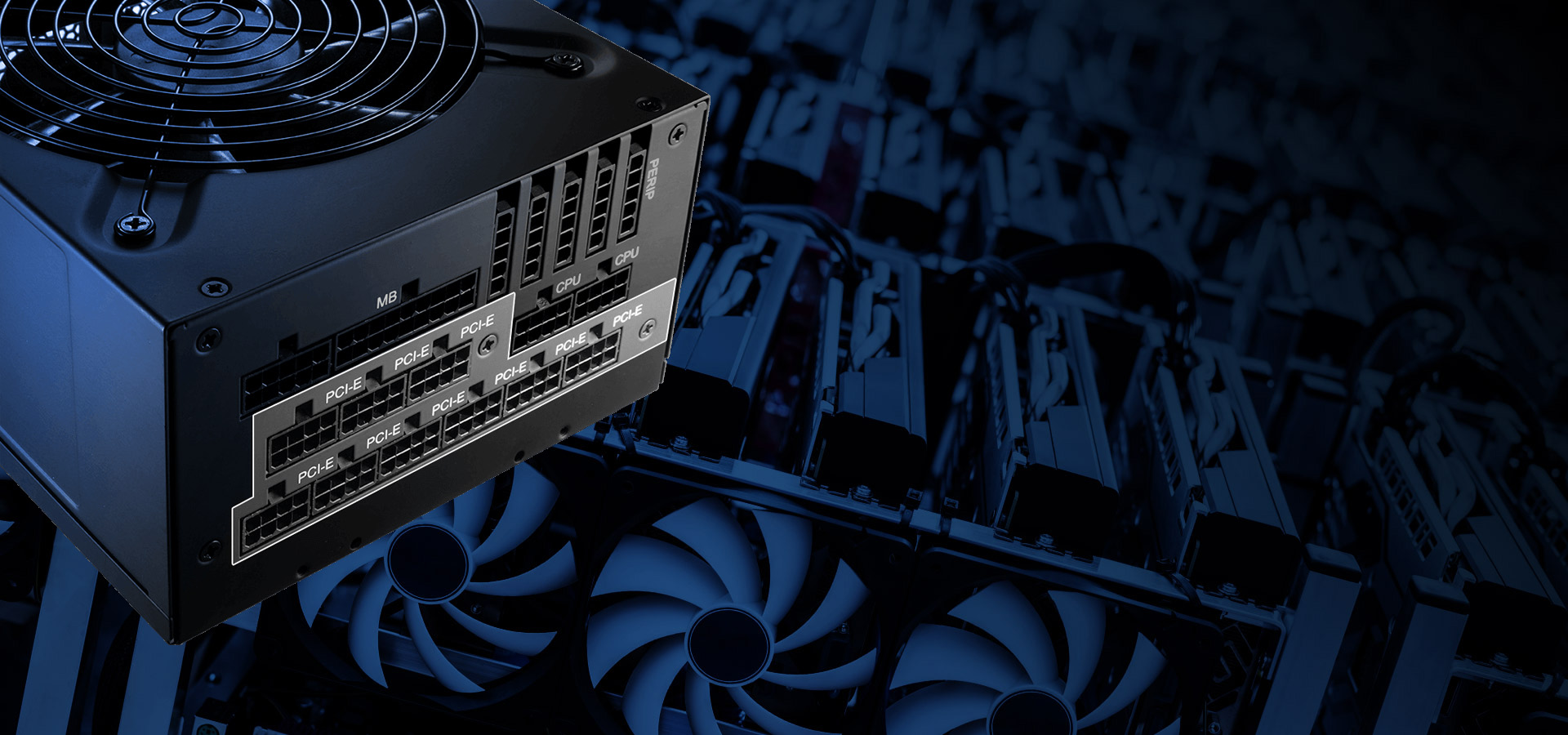

Full Modular Design with Ribbon Cable
The fully modular design of a mining PSU comes with easy installation, an important factor in building your own rig.

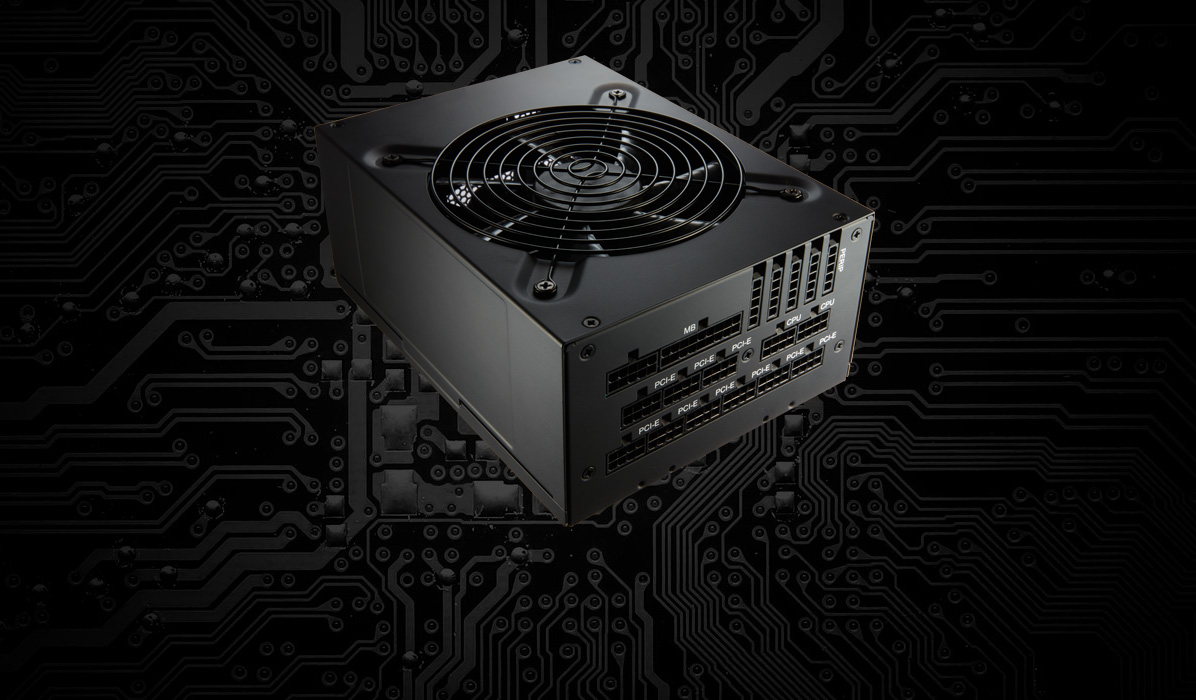

DC to DC Module Design
Cannon 2000W offers supreme efficiency, voltage stability and high system compatibility, making it a desirable component for your mining rigs.
Japan-made E capacitors
Cannon 2000W with Japan-made E capacitors offers supreme efficiency, voltage stability and high system compatibility for your mining rigs.
|Length||600mm / 23.62"||700mm / 27.55"||650mm / 25.59"
500mm / 19.68"
|500mm / 19.68"||500mm / 19.68"||155mm / 6.10"|
|AC Input||100-240Vac~ 15-12A 50-60Hz|
|Max Output Current||25A||25A||166.6A||0.5A||4A|
|Max Combined Power||150W||2000W||6W||20W|
|Total Power||2000W @200-240Vac
|Rated Output Power||2000W @ 200-240Vac
1500W @ 115-200Vac
1200W @ 100-115Vac
|Form Factor||ATX / EPS|
|PFC||Active PFC > 0.9|
|Efficiency||92% @ typical load|
|Fan Type||135mm FDB Fan|
|Dimensions(L x W x H)||200 X 150 X 86mm|
|Weight||2.64 kg / 5.8 lbs|
|Operation Temp.||200,000 Hrs|
|Safety Approval||TUV / CE / UL / FCC / RCM / BSMI / KC|
|Graphics Card||Supports 9 GPU|
|PCI-E 6+2 Pin Slots||Supports 18 Sets|
